Brixwell Glass to Header Mount Shower Door Pivot Hinge, Solid Forged Brass, Black Nickel Finish, 3/8" and 1/2" Glass Thickness, 3-1/4" End to End Hole Spacing

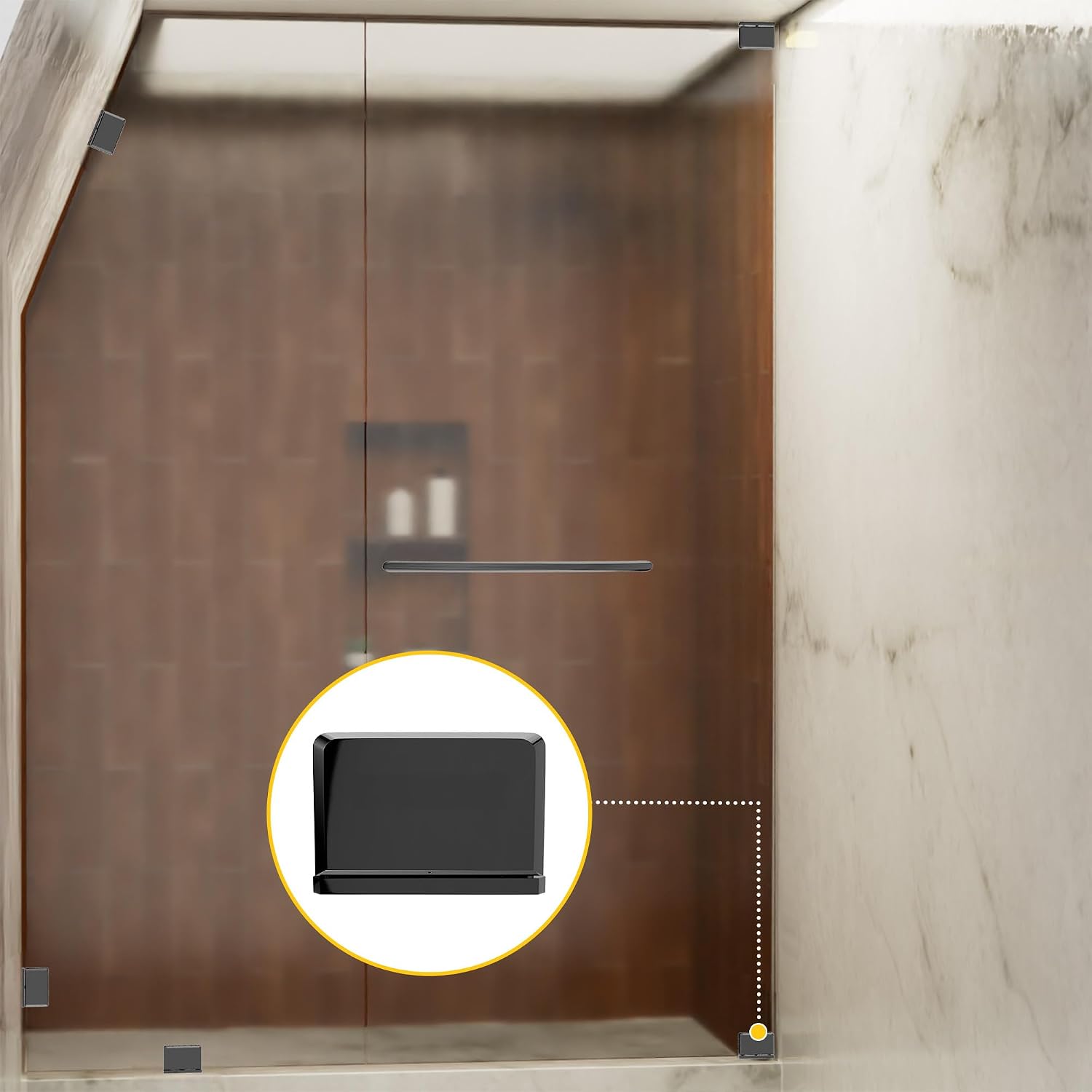

The Brixwell Glass to Header Mount Shower Door Pivot Hinge in Black Nickel finish is designed for frameless shower enclosures requiring a secure connection. Constructed from solid forged brass with precision-machined stainless steel internal components, this hinge offers strength, durability, and smooth operation for shower hardware, glass hardware, and door hardware applications. It is equipped with precision wound stainless steel return springs that provide self-centering 0 degree return and self-closing from a 25 degree door angle, ensuring reliable function in daily use. The hinge is compatible with 3/8" (10mm) and 1/2" (12mm) tempered glass, requiring fabrication cutouts for installation. Each hinge is rated at 40 lbs capacity, and with two hinges, a frameless shower door can be supported up to 120 lbs with a maximum width of 36". Dimensional details include glass edge to hole spacing of 1-13/16", end to end hole spacing of 3-1/4", and a cutout radius of 3/8" at each corner, allowing accurate installation and fit. For weight guidance, 3/8" glass weighs 5.05 lbs/sf while 1/2" glass weighs 6.40 lbs/sf. The beveled edge profile provides a smooth finish, enhancing the look of frameless hinge systems. Hardware includes matching finish stainless steel hex clamp screws, crosshead screws, and a hex wrench for installation. This hinge integrates seamlessly with frameless hinge, pivot hinge, and mount hinge applications, making it ideal for both residential and commercial frameless shower projects.

• SOLID BRASS BODY: It is constructed from solid forged brass with black nickel finish, combining strength and appearance that integrates with frameless hinge, shower hardware, and glass hardware fittings.
• SELF-CENTERING ACTION: Equipped with precision wound stainless steel return springs that provide self-centering 0 degree return and self-closing capability from 25 degree door angle, supporting reliable daily shower use.
• DOOR CAPACITY RATINGS: Each hinge supports 40 lbs. When two hinges are used, doors up to 120 lbs with a maximum width of 36" can be accommodated, providing proper support and balanced operation for frameless glass shower door assemblies.
• GLASS THICKNESS COMPATIBILITY: Fits 3/8" (10mm) and 1/2" (12mm) tempered glass. Supports up to 5.05 lbs/sf for 3/8" glass and 6.40 lbs/sf for 1/2" panels, ensuring secure and stable installation for frameless glass doors.
• PRECISE DIMENSIONS: Features glass edge to hole spacing of 1-13/16", end to end hole spacing of 3-1/4", and 3/8" cutout radius at each corner, ensuring accurate fabrication and installation alignment.
• INSTALLATION HARDWARE: Includes matching finish stainless steel hex clamp screws, crosshead screws, and hex wrench, designed to blend with black nickel finish and support door hinge and mount hinge systems.
• Supplied with matching finish stainless steel mounting screws, crosshead screws, hex wrench.
